Crossfade Audio in Sound Forge Without Level Dips

Quick answer: use Edit → Paste Special → Mix when you want to commit one waveform into another, and Options → Event → Automatic Crossfades when you want an editable overlap between events on the same channel. Either way, align the audio and match its level before choosing a curve. A longer crossfade won't fix bad timing, opposite polarity or mismatched room tone.

A clean crossfade has three parts to judge: the handoff into the overlap, the combined midpoint and the exit. If the middle dips, the curves may be wrong for unrelated material or the sources may be cancelling. A bump suggests correlated audio adding too strongly. And if it sounds hollow, timing or phase usually needs attention before duration does. The menu paths below follow Sound Forge Pro 2026 for Windows; older Sony/MAGIX and Audio Studio tutorials may use different commands.

Crossfade vs Fade: Use the Right Edit

A fade changes the level of one source over time, often to or from silence. A crossfade overlaps two sources while one falls and the other rises. Use a normal fade when a song ends, a clip starts from silence or there is no second source to preserve. Use a crossfade when continuity must pass from one recording, take, song or ambience bed to another. If the job is to merge two audio files into one seamless transition, the overlap does the work; merely placing the files end to end does not.

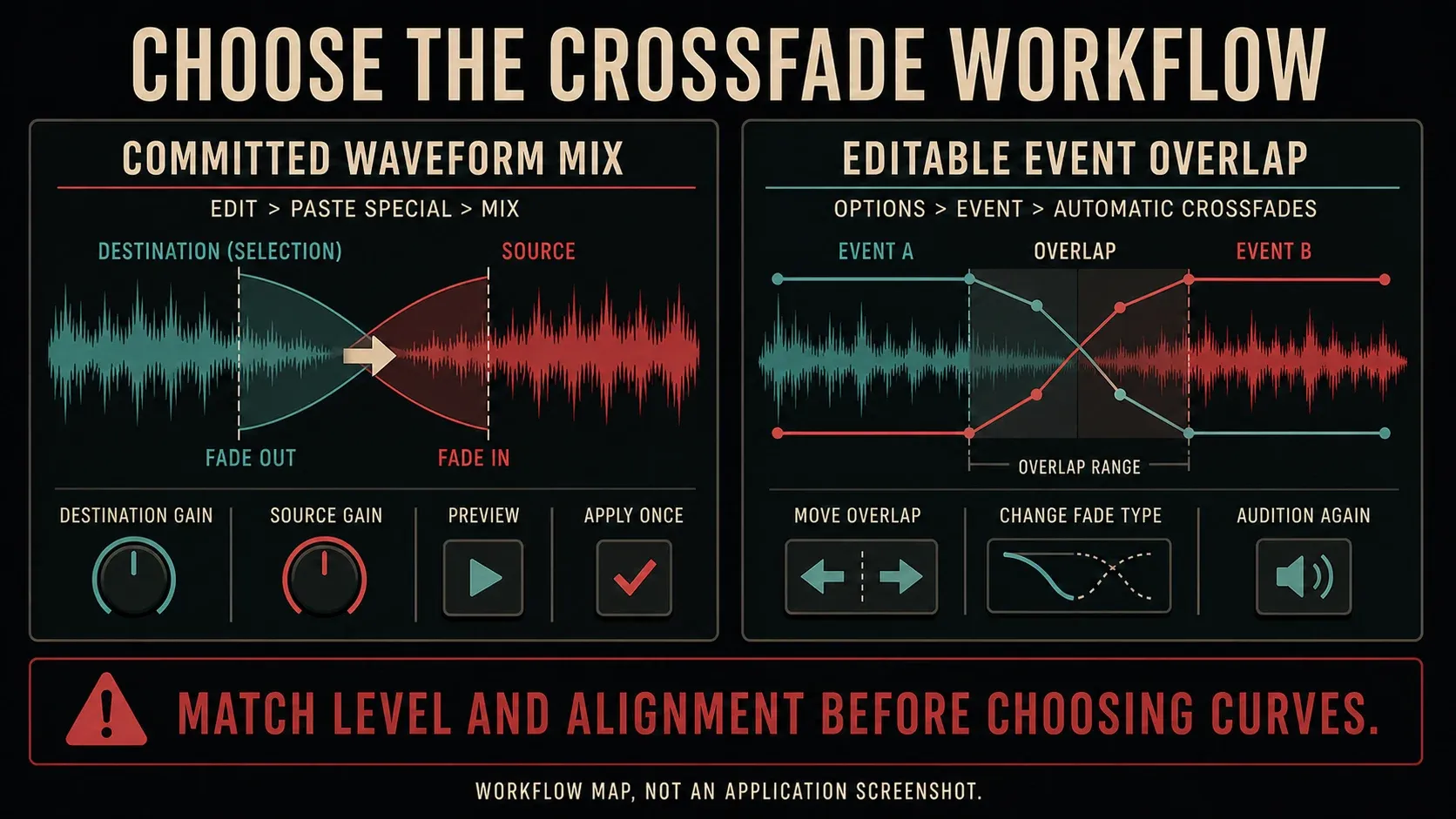

Choose the Sound Forge Crossfade Workflow

Paste Special → Mix for a Committed Crossfade

1. Preserve both sources. Save a working copy with handles around the outgoing and incoming audio.
2. Copy the incoming audio. Choose the Edit Tool, then select and copy the source that should enter during the transition.
3. Set the destination. Place the cursor or select the destination range where the overlap should begin.
4. Open Mix. Choose Edit → Paste Special → Mix.
5. Match the gains. Set source and destination sustain levels before judging curves.
6. Set the transition. Choose fade-in and fade-out lengths and curve types.
7. Preview three points. Hear the start, midpoint, and exit with surrounding context.
8. Apply and verify. Apply once, then check new peaks and the resulting boundaries.

The current Sound Forge Pro 2026 Mix documentation confirms source and destination faders, independent data inversion, fade-in/out lengths, proportional fade lengths and curve choices. It also documents drag-and-drop Mix mode and the Auto-crossfade Mix with selection preference. That preference makes the fade curves respect the destination selection and file length; it won't align beats, words or phase for you.

The shared processing-dialog controls provide Preview and Bypass plus pre-roll and post-roll. Use that surrounding audio to judge the handoff; an isolated midpoint can hide a damaged word, late drum hit, or abrupt exit.

Crossfade Overlapping Events

The current event crossfade help places the control at Options → Event → Automatic Crossfades. With it enabled, dragging one event over another on the same channel creates a transition. Turn it off and overlapping events punch in and out without fades.

1. Enable Automatic Crossfades.
2. Drag one event over the other to create the required overlap.
3. Show crossfade length with Options → Event → Show Crossfade Lengths or Ctrl+Shift+T.
4. Right-click the crossfade region, open Fade Type, and choose a curve combination.
5. Move the overlap and audition repeatedly.

A shorter event placed entirely inside a longer one does not receive an automatic crossfade. Sound Forge documents a manual punch-in method: drag the shorter event into place, then drag fade handles from its upper corners at both ends. This lets the replacement enter and leave without applying one long crossfade across the entire event.

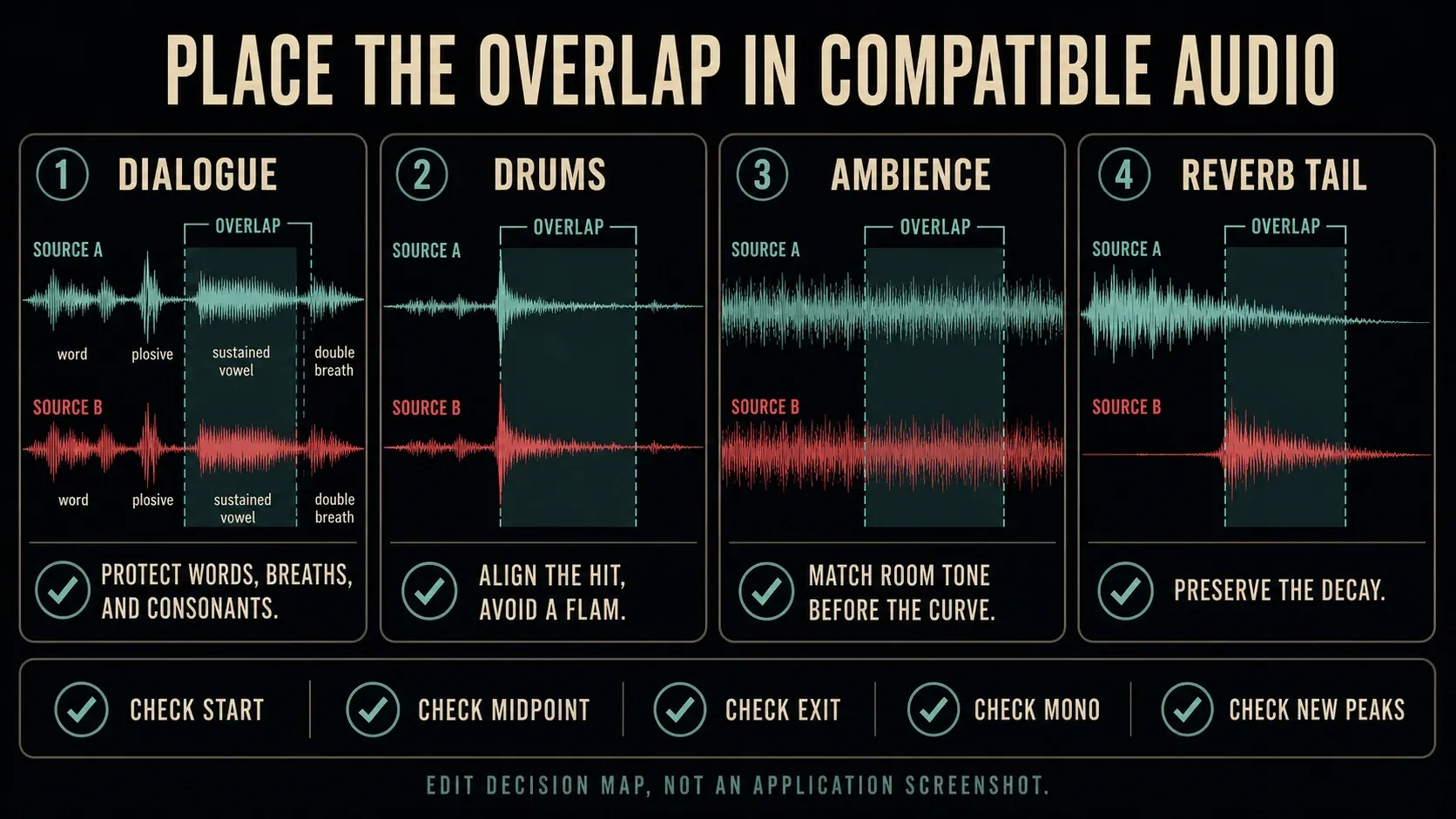

Choose Overlap Length by Content

There's no universal crossfade duration. The overlap needs enough compatible audio for the handoff, and it has to stay short enough not to blur timing or combine unrelated events.

• Dialogue punch-in: place the overlap in stable room tone or within a sustained vowel, not across a plosive.
• Drum edit: protect the intended transient and keep competing hits out of the midpoint.
• Music phrase: align beat, bar, pitch, and sustain before extending the overlap.
• Ambience: use enough time for noise and texture to transfer without a noticeable gate.
• Reverb tail: preserve the complete decay while avoiding a double attack from the incoming source.

If the timing is wrong, a longer crossfade often sounds like flam, chorus, or smear. Align the sources first. The markers and regions workflow helps store candidate sync points and consistent audition ranges.

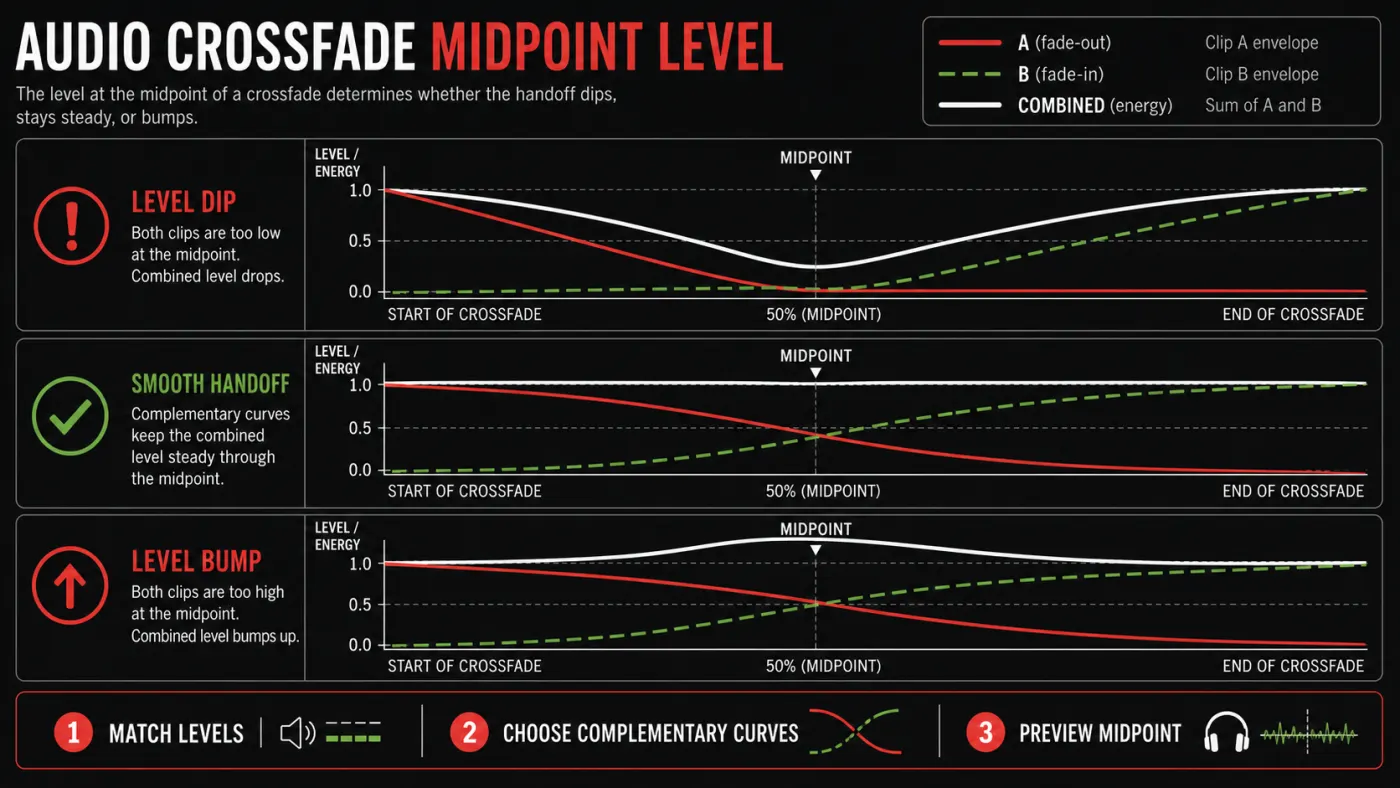

Fix a Dip or Bump in the Middle

Match apparent level and spectral balance before blaming the curves. If one clip is already quieter, even a mathematically complementary pair will hand off to a quieter source. Correct the source or destination sustain level, or choose a better-matched section of room tone first.

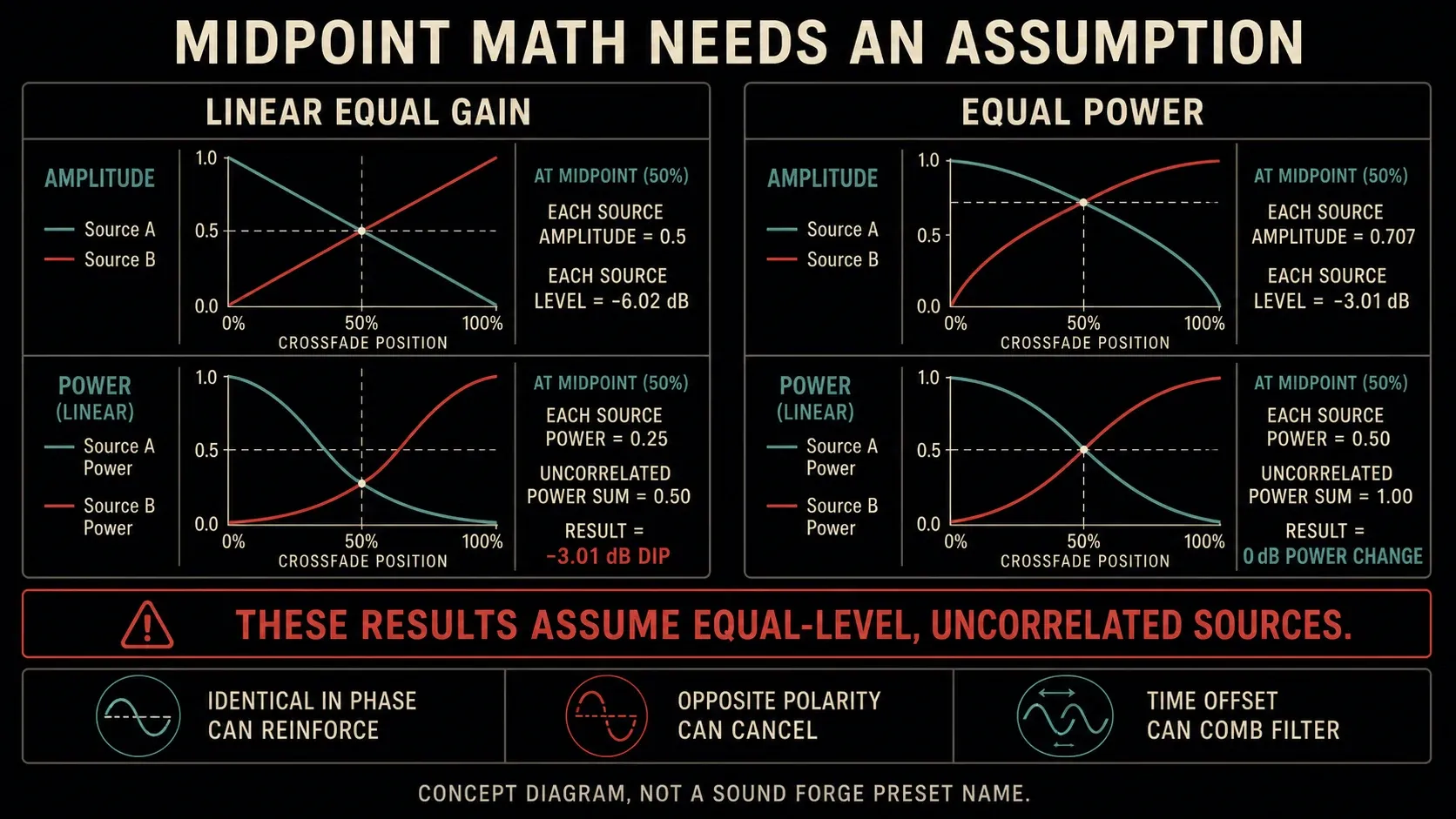

The midpoint math explains the classic dip. With two equal-level, uncorrelated sources and linear equal-gain fades, each source is at 0.5 amplitude, or −6.02 dB, halfway through. Their powers add as 0.5² + 0.5² = 0.5, about −3.01 dB relative to one source. An equal-power pair puts each near √0.5, or 0.707 amplitude and −3.01 dB, so the combined power stays near 1 for uncorrelated material. Audacity’s fade and crossfade explanation documents this same use case and warns that equal-power curves can increase the peak.

Sound Forge names event fade curves fast, slow, linear, smooth and sharp; its current help does not label a specific combination “equal power” or “equal gain.” Treat the math as a starting principle, then audition the available curve pairs at matched level instead of assigning an undocumented formula to a menu name.

A dip means the combined contribution becomes too low or cancellation occurs; a bump means both sources contribute too much or carry correlated content that reinforces. Change one variable at a time: source level, destination level, overlap, or curve. Otherwise a better render tells you nothing about why it improved.

Curve Choices Are Source-Dependent

Event crossfades support combinations of fast, slow, linear, smooth and sharp curves. For unrelated sources, equal-power-style complementary curves can keep perceived level steadier. For highly correlated or near-identical takes, the same curves can create a bump or phase interaction because both clips contain similar energy. That source-dependent split is also documented in Universal Audio’s current crossfade guidance, which recommends equal gain for phase-coherent material and equal power for dissimilar material.

Listen at the midpoint in stereo and mono. A curve that looks symmetric isn't proof of a transparent handoff. Use the fade curve guide for the behavior of individual envelopes, then judge the sum here.

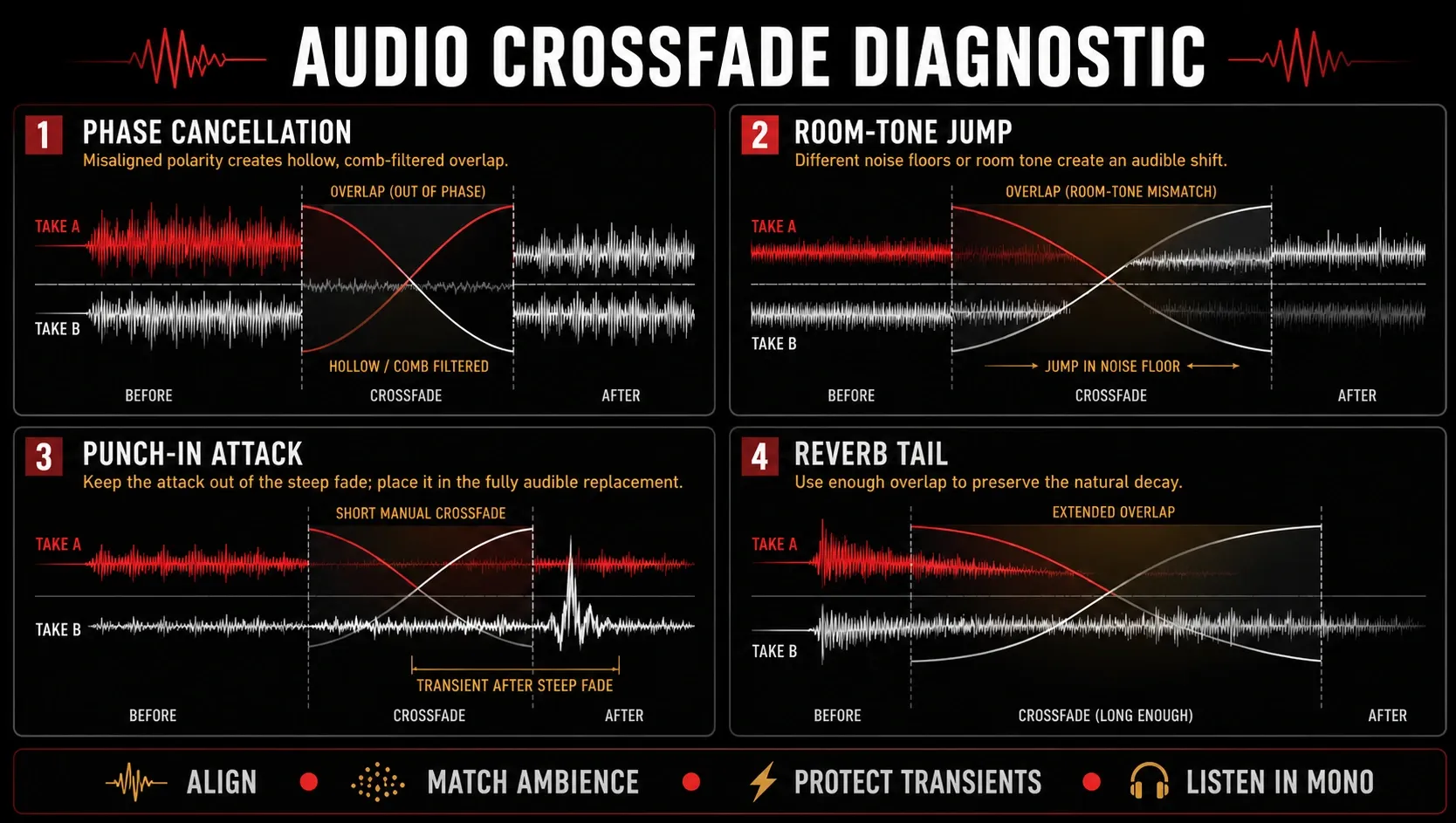

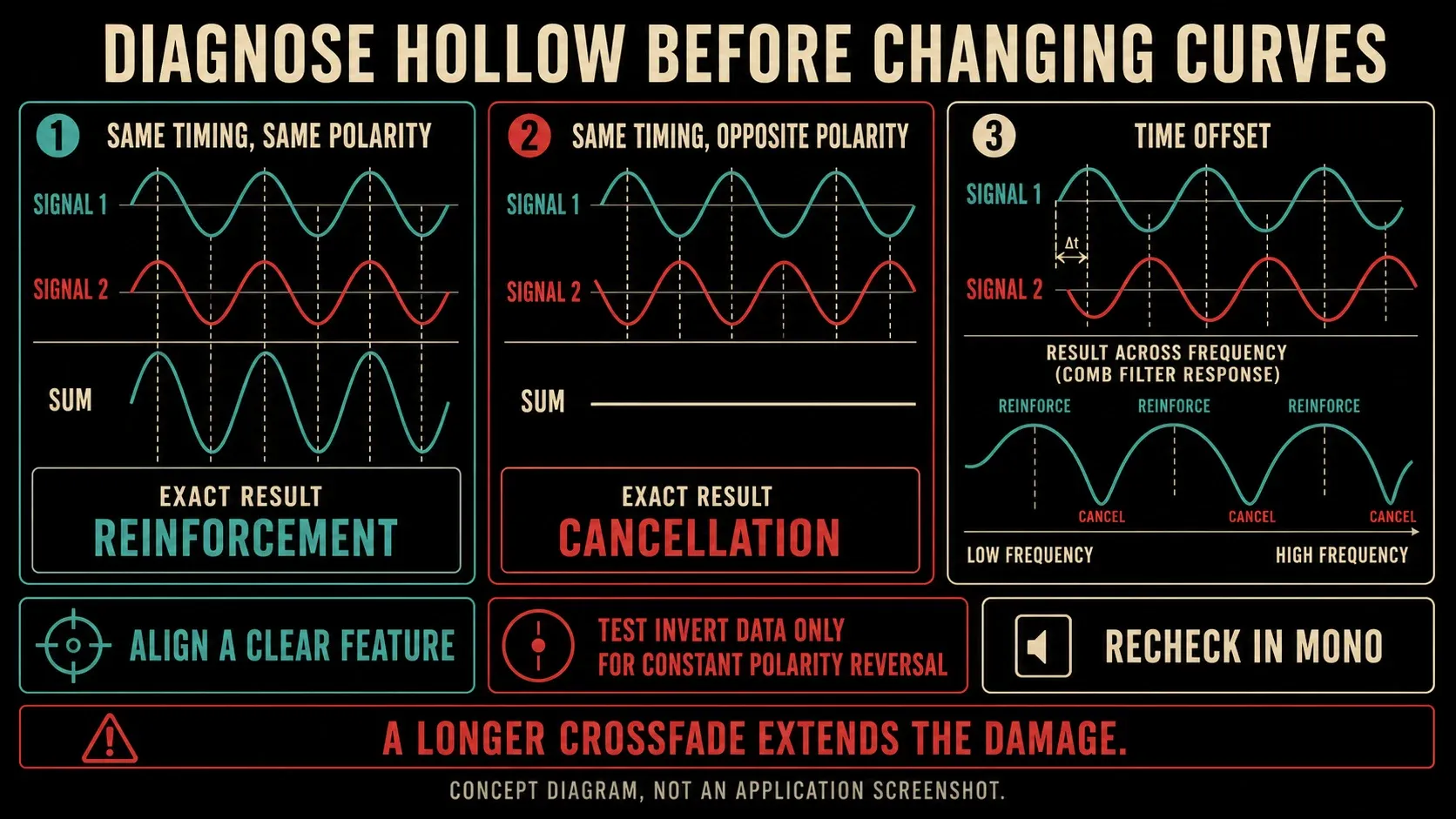

Phase and Alignment Problems

Two recordings of the same source can be slightly delayed or have different polarity and phase. During overlap, frequencies reinforce and cancel, creating a hollow or comb-filtered sound. Making the crossfade longer extends the damage.

Zoom in and align a clear waveform feature or musical transient. Test polarity inversion only when measurement and listening support it; Sound Forge’s Mix dialog provides Invert Data separately for the source and destination. Inversion corrects a constant polarity reversal, not arbitrary time-varying phase differences. The Sound Forge channel-routing guide separates polarity inversion from channel delay and frequency-dependent comb filtering.

Room Tone and Ambience Mismatch

A room-tone jump can remain audible even with a smooth level trace because the noise spectra differ. One take may contain air conditioning, microphone self-noise, a moving audience, or a different microphone position. Match a compatible ambience bed, repair the background, or move the edit.

For dialogue, build handles containing stable room tone around both takes, and don’t crossfade a breath from one take into an unrelated breath from another; the overlap can sound like a double inhale. Field recordings follow the same logic: keep obvious moving events out of the midpoint.

Use a Tiny Crossfade for an Edit Click, Not Every Click

A cut can click when the waveform jumps abruptly at the boundary. Aligning compatible zero crossings or adding a very short crossfade across the edit often removes that discontinuity. Keep it long enough to hide the jump but short enough not to soften the next attack. The cut-and-trim workflow covers sample-level boundaries and zero crossings.

A crossfade is the wrong tool for general click removal. Mouth clicks, vinyl ticks and random digital impulses are defects inside one source, with no handoff between two clips involved; use the appropriate click-and-pop repair workflow instead.

Punch-Ins and Transient Protection

Place the incoming attack inside the fully audible section of the replacement rather than in the steepest part of its fade. At the exit, let the original sustain or ambience take over before the replacement ends. Two short manual crossfades usually preserve a punch-in better than one long envelope across the replacement.

For drums or rhythmic music, compare the edit with a metronomic reference and in the full mix. A crossfade can remove a click while still shifting the groove by a few milliseconds.

Committed vs Editable Decisions

Paste Special → Mix is appropriate when the position and transition are approved and a single waveform result is useful. Event crossfades are better while timing, overlap, and curves are still being auditioned. Render or commit only after source alignment and room tone are stable.

Keep the original files and note the final overlap length and curve combination. If a later processor exposes the transition, return to the editable or pre-mix source instead of layering another crossfade over the committed result.

Source-Specific Crossfade Strategy

Dialogue Replacement

Choose handles with matching microphone perspective and room tone, and place each edge outside plosives, breaths, and consonant clusters. Use two short manual fades around a replacement rather than letting one long overlap mix different performances for the entire line.

Music Edit Between Takes

Estimate the tempo, then align the beat subdivision, pitch and sustain in the editor. Tap Tempo estimates BPM; it does not move or stretch the clips. Compare drum transients and bass phase in mono. If takes were recorded with multiple microphones, alignment can differ by channel; a transition that's clean on the close mic may comb-filter on overheads or room mics.

Crossfade Between Two Songs

Pick the musical handoff before you worry about its duration. Align the downbeat or phrase boundary, match perceived loudness, and decide whether vocals, bass lines or drum transients are allowed to overlap. Event crossfades are easier to revise while timing is unsettled; Paste Special → Mix is better after the transition is approved. For unrelated songs, start with an equal-power-style pair, then shorten the overlap if the midpoint becomes crowded or harmonically tense.

Loop Seam

Audition repeated playback instead of relying on one pass through the seam. The rhythmic period needs to survive, and a transient shouldn't end up duplicated in both sides of the overlap. Ambience and modulation must also cycle naturally; a smooth single seam can still reveal a repeating level pulse.

Sound-Effect Layer

When two effects are intentionally combined, the operation may be a mix rather than a handoff. Keep source and destination levels under control, check summed peaks, and decide whether both should remain audible after the nominal midpoint. Don’t force complementary fade curves if the creative goal is sustained layering.

Compare One Change at a Time

Save candidates from the same source handles and sync point. Keep the overlap fixed while you compare curve combinations, then hold the preferred curves and change overlap length, and adjust source/destination gain last. That sequence shows you which decision fixed a dip, bump, or phase problem.

Use markers several seconds before and after the transition so every audition begins with identical context. Level-match candidates, listen in mono, and don't skip a pass at low monitoring level. A midpoint bump that seems exciting at first can sound like an obvious edit after repetition.

Before the final comparison, write down the failures that disqualify a candidate: doubled words, transient flam, a room-tone jump, comb filtering or new clipping. Keep the shortest, simplest transition that avoids them. An elaborate curve isn't a benefit if a plain one sounds cleaner.

Crossfade QA Checklist

• Source and destination levels are matched intentionally.
• The overlap begins and ends in compatible material.
• Attacks, consonants, beats, and reverb tails remain complete.
• The midpoint has no dip, bump, click, or doubled event.
• Stereo width and mono compatibility remain stable.
• Room tone and noise spectrum transfer naturally.
• New peaks have been checked after summing.
• The final file is saved as a new lossless master.

Common Crossfade Failures

• Midpoint gets quieter: match levels, check curve complement, and test for cancellation.
• Midpoint gets louder: reduce overlap contribution or use curves suited to correlated material.
• Transition sounds hollow: align timing and check polarity before changing length.
• Speech has a double breath: move the overlap into stable room tone or a compatible sustained sound.
• Drum hit flams: align the transient and shorten the overlap.
• Reverb is cut: extend source handles and preserve the full decay.
• Automatic crossfade did not appear: check that Automatic Crossfades is enabled and the events share a channel. A short event contained inside a longer one needs manual fades at both edges.

Crossfade FAQ

How do I crossfade in Sound Forge?

Use Edit → Paste Special → Mix for a committed waveform mix, or overlap events with Options → Event → Automatic Crossfades enabled. Align and level-match the sources before choosing curves.

Can Sound Forge crossfade overlapping events?

Yes. Overlap two events on the same channel with Automatic Crossfades enabled, then right-click the crossfade region and choose a fade-type combination.

What is the difference between a fade and a crossfade?

A fade changes the level of one source over time, often to or from silence. A crossfade overlaps two sources while one fades out and the other fades in, transferring continuity across the edit.

Why does my crossfade get quieter in the middle?

With equal-level, uncorrelated material, linear equal-gain curves produce about a 3 dB midpoint dip. Unequal source levels or phase cancellation can deepen the drop. Match levels, then test curve, alignment and polarity separately.

Why can an equal-power crossfade get louder?

Equal-power math assumes uncorrelated sources. Similar in-phase audio can reinforce during the overlap, while misaligned similar audio can comb-filter. Try an equal-gain-style pair and correct timing first.

Why does a crossfade sound hollow?

Similar sources are probably misaligned in time or phase, causing comb filtering during the overlap. Align them before changing curve or duration.

Can a crossfade remove an edit click?

A very short crossfade can hide a discontinuity where two clips meet. It is not the right repair for mouth clicks, vinyl ticks or random digital impulses inside one recording.

What is the best crossfade length?

Use the shortest overlap that transfers continuity without cutting attacks, tails, words, beats or ambience. The source and purpose determine the duration.

Approve the Start, Midpoint, and Exit

Align and level-match the sources, place the overlap in compatible material, choose complementary curves from the actual correlation, and judge the start, midpoint, and end in stereo and mono before committing.

Last fact-checked September 13, 2026 against the current Sound Forge Pro 2026 Mix, Processing Dialogs and Crossfading Events help, plus the cited crossfade references.
